The opening and closing part of the flanged butterfly valve is a flange. The movement direction of the flange is perpendicular to the direction of the fluid. The flanged butterfly valve can only be fully opened and fully closed and cannot be adjusted or throttled.

Large flanged butterfly valves are usually equipped with gearbox type actuator, where the handwheel is connected to the stem via a gearbox. This will reduce the force but at the same time reduce the speed of the operation. The flanged butterfly valve should be installed in the open position.

Flanged butterfly valve is a kind of butterfly valve. It is the same as the flanged butterfly valve, which is another common connection method of butterfly valve and has a wide range of uses. The disc of flanged butterfly valves is a plate, swinging with valve shaft to turn on or off valves.

A flanged butterfly valve is usually cylindrical in shape, which is typically installed in a pipe system or as an inlet or outlet to some type of closed system.

Lug butterfly valves are throttling valves that turn in a quarter-turn rotary motion. Lug butterfly valves control the media flow in a system. The operators use these lug butterfly valves in different media and applications. When you operate a lug butterfly valve,

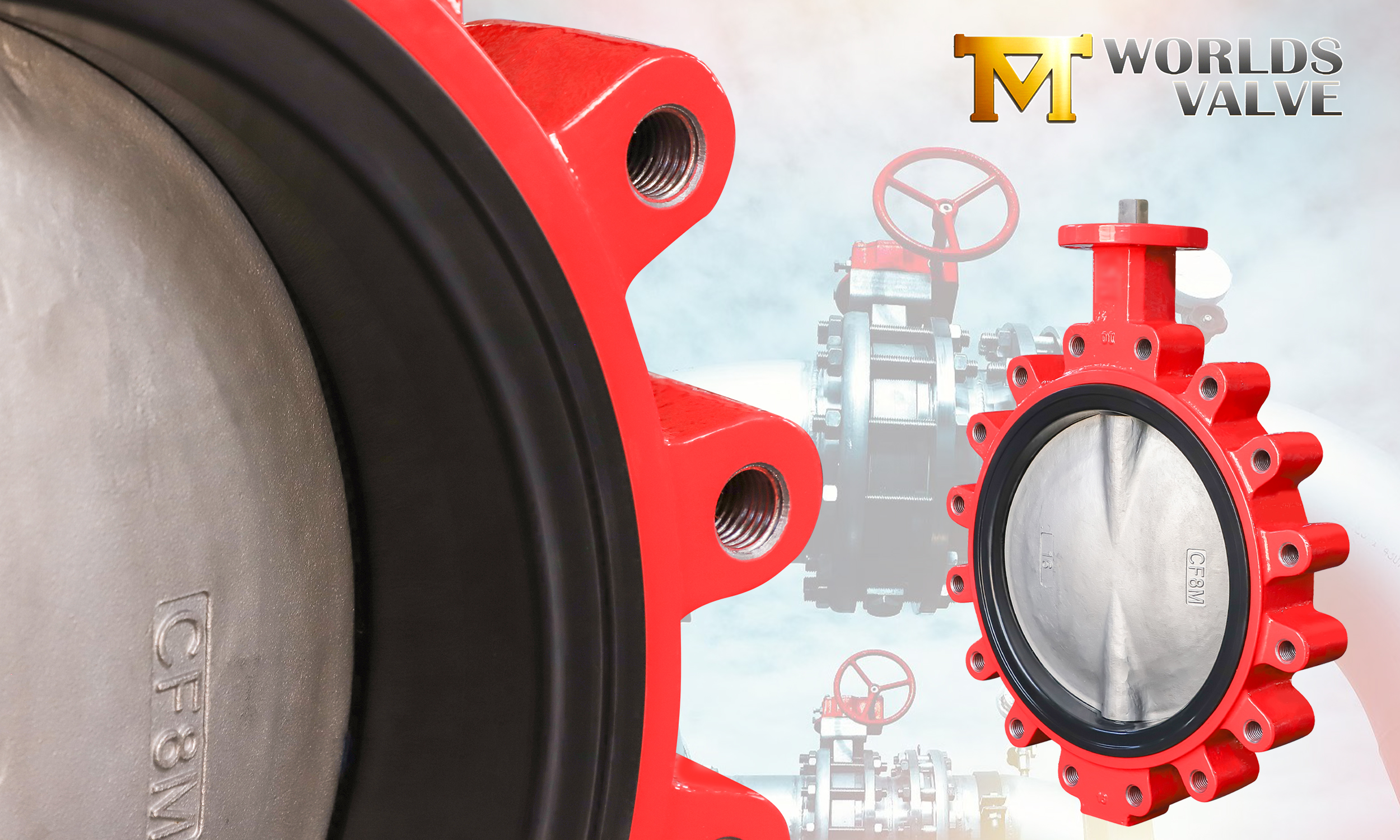

A lug butterfly valve is a kind of butterfly valve with a body that has “lugs” or hole protrusions around its circumference that provides passages for bolts.

The lug butterfly valve is connected between two pipe flanges with stud bolts. The structure of lug butterfly valve is simple, small in size and light in weight, which consists of only a few parts. Moreover, lug butterfly valve can be opened and closed quickly by rotating 90°.

The lug butterfly valve is somewhat similar to a 3-piece ball valve where one end of the wire can be removed without affecting the opposite side. Lug butterfly valve can be done by using threaded inserts, flanges and two sets of lugs that do not use nuts, as each flange has its own bolt. Lug butterfly valve is thus convenient to clean, inspect, repair or replace the lug butterfly valve because you do not need to shut down the entire system.

The lug-style butterfly valves, unlike the wafer-style, carry the weight of the piping through the valve body. Lug type butterfly valve allows dead-end service or removal of downstream piping.

The lug-style butterfly valves, unlike the wafer-style, carry the weight of the piping through the valve body. Lug type butterfly valve allows dead-end service or removal of downstream piping.
