CBF05E-TA04
OEM|ODM
| Quantity: | |
|---|---|

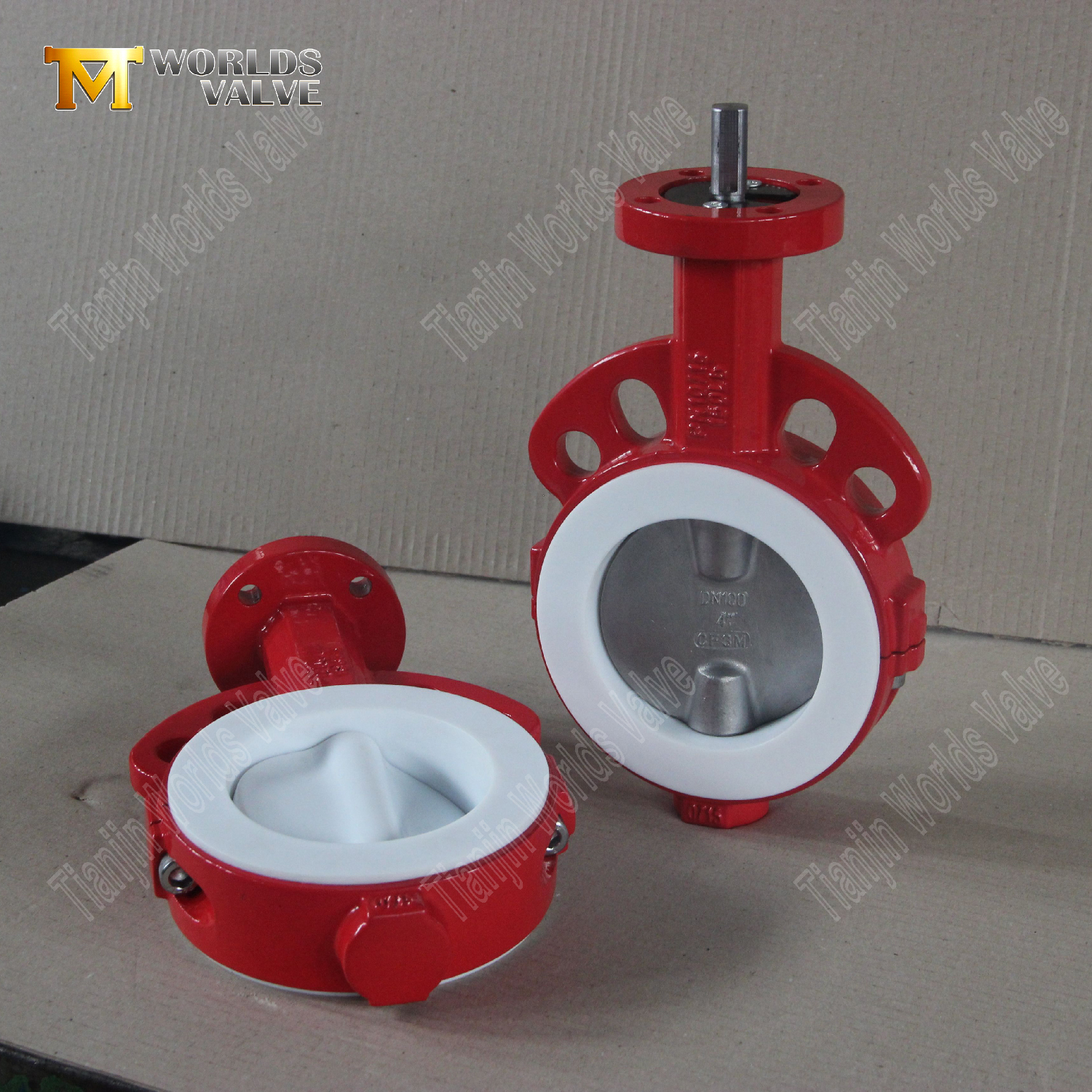

1. Butterfly Valve with PTFE Full Lining for Ultimate Chemical Resistance
- The PTFE (Polytetrafluoroethylene) lining provides superior resistance to corrosive chemicals, acids, and solvents, making it ideal for aggressive media.
- Suitable for pH levels from 0 to 14, ensuring compatibility with both acidic and alkaline solutions.

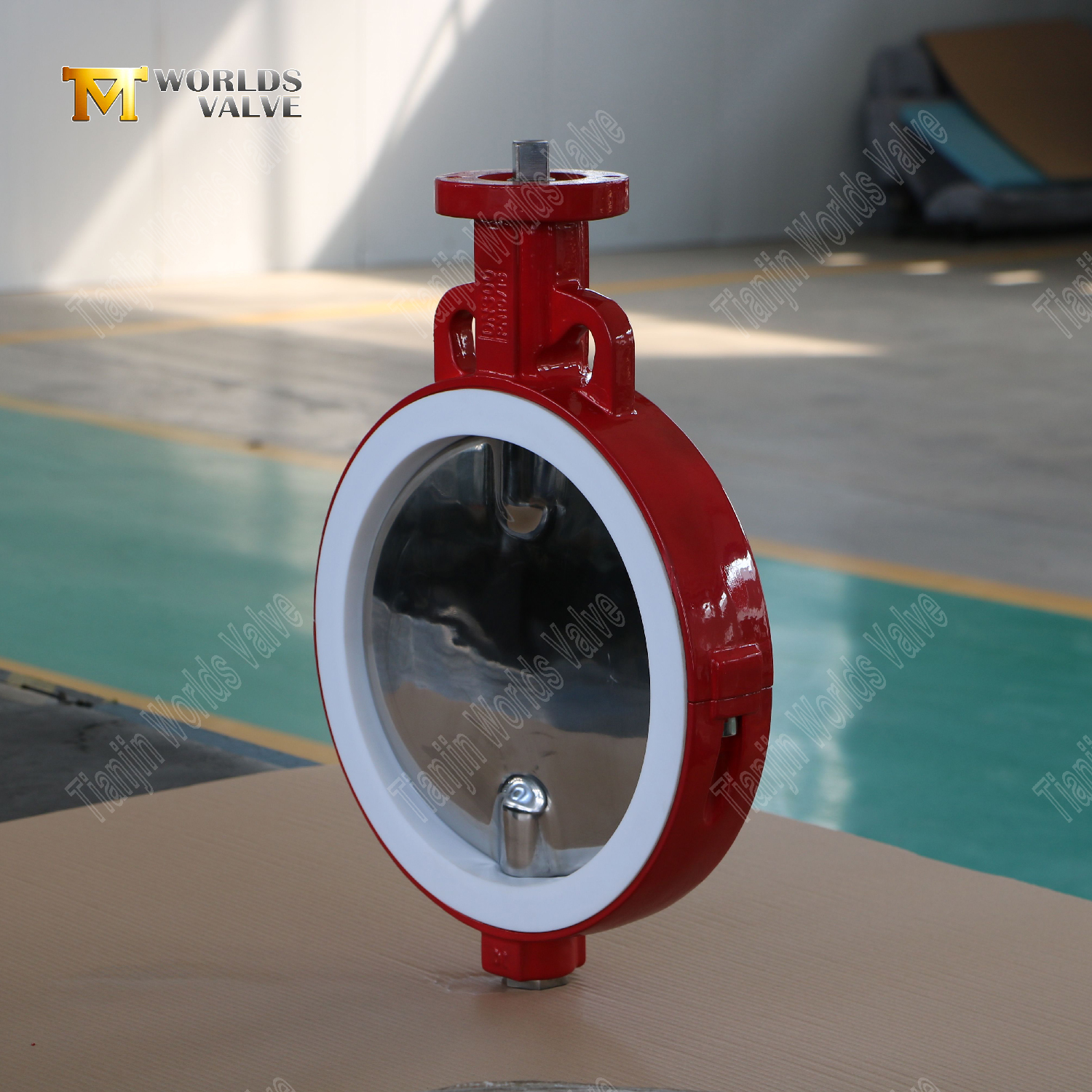

2. Polished Disc for Hygienic Performance
- The mirror-finished disc (Ra ≤ 0.8 µm) eliminates surface imperfections, preventing bacterial growth and ensuring compliance with FDA and EHEDG standards.
- Ideal for sterile applications like CIP (Clean-in-Place) and SIP (Steam-in-Place) systems.

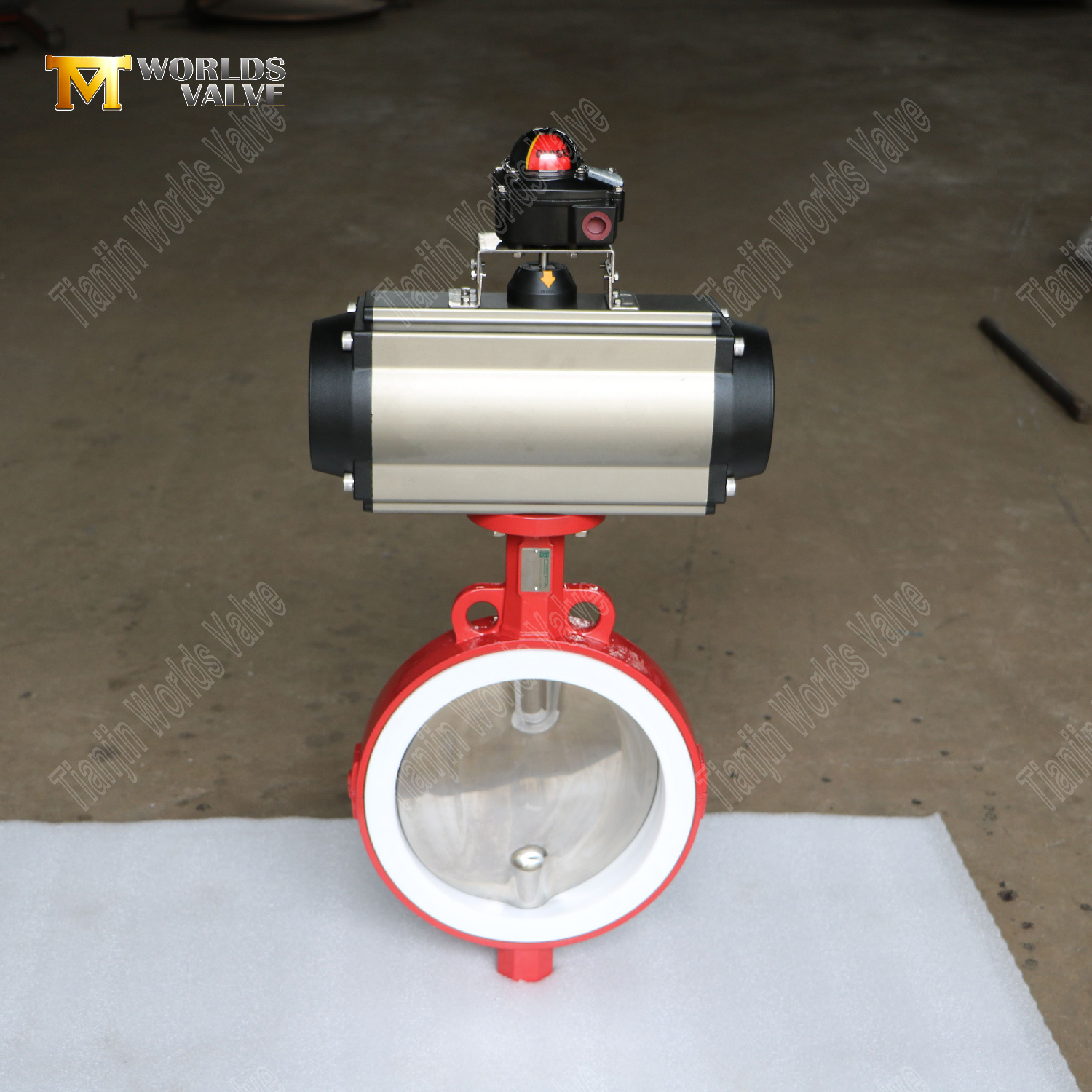

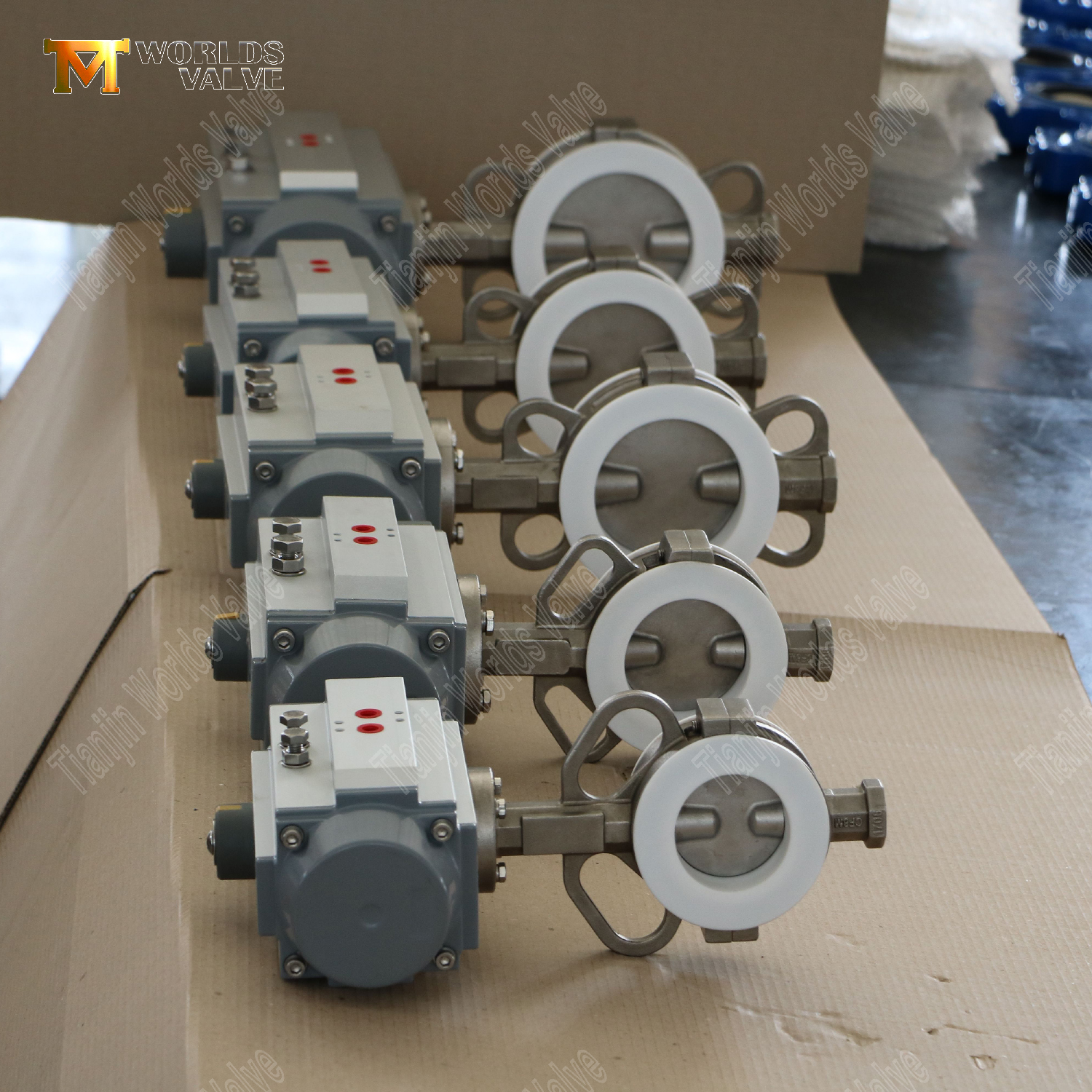

3. Pneumatic Actuator for Precise Automation
- The pneumatic actuator enables quick, reliable control with minimal energy consumption.
- Configurable for on/off or modulating (0–90°) operation, compatible with PLC and SCADA systems.
4. Bubble-Tight Sealing
- PTFE Lined seats and precision-engineered discs ensure zero leakage, meeting ISO 5208 Class VI standards.
5. Certified Quality
- Compliant with ISO 9001, API 609, and CE, WRAS, UKCA, ACS standards, ensuring global acceptance.
- Rigorous quality control processes, including pressure testing and material inspection.
1. Expertise in OEM/ODM Services
As a trusted PTFE Lined Butterfly Valve Factory, we offer customized solutions tailored to your specific requirements. From design to delivery, we ensure seamless execution.
2. Global Reach with Local Support
With a presence in over 50 countries, we provide timely delivery and dedicated customer support worldwide.
3. Competitive Pricing
Our efficient manufacturing processes and economies of scale enable us to offer high-quality valves at competitive prices.
4. Comprehensive After-Sales Service
We have a professional technical team that provides technical support, installation guidance, and maintenance services.
Size | DN50-DN150 | DN50-DN900 |
Working pressure | 16Bar | 10Bar |
Shell | 24Bar | 15Bar |
Seal | 18Bar | 11Bar |
Operating Temperature | -20℃~+180℃ | |
Operating Environment | Ballast and bilge system Chemical processing Desalination plants Drilling rigs Drinking water Dry powder Food and beverage Gas plants HAVC Mining industry Paper industry Sand handling Seawater Sugar industry Thermo technical water treatment Waste water | |
Driving method | Hand Lever Worm Gear Electric Pneumatic | |
Name | Material |
Body | Cast Iron Ductile Iron Carbon Steel Stainless Steel AL-Bronze |
Disc | PTFE Ductile Iron Carbon Steel Stainless Steel AL-Bronze |
Shaft | Stainless Steel Monel K500 |
Seat | PTFE |
Design Standard | EN 593 , MSS SP67 API 609 BS5155 |
Inspection & Test | API 598 ISO 5208 EN 12266 |
End Standard | ANSI B16.1 CL. 125LB & B16.5 CL. 150LB AS 2129 Table D & E BS 10 Table D & E DIN 2501 PN6, PN10 & PN16 EN 1092 PN6, PN10 & PN16 ISO 2531 PN6, PN10 & PN16 ISO 7005 PN6, PN10 & PN16 KS B 1511 / JIS B 2210 5K & 10K MSS SP44 CL. 150LB AWWA C207 SABS 1123 Table 1000/3 & Table 1600/3 |
Face to Face | ISO 5752 , EN 558 , MSS SP67 and API 609 DIN3202 |
Top Flange | ISO 5211(according customer’s needs) |
Discover high-performance PTFE Lined Butterfly Valves with Polished Disc & Pneumatic Actuators. ISO 9001, API 609, and CE, WRAS, UKCA, ACS certified for pharmaceuticals, food, and chemical industries. Request a quote today!
