CBF02-TF01
OEM|ODM
| Quantity: | |
|---|---|

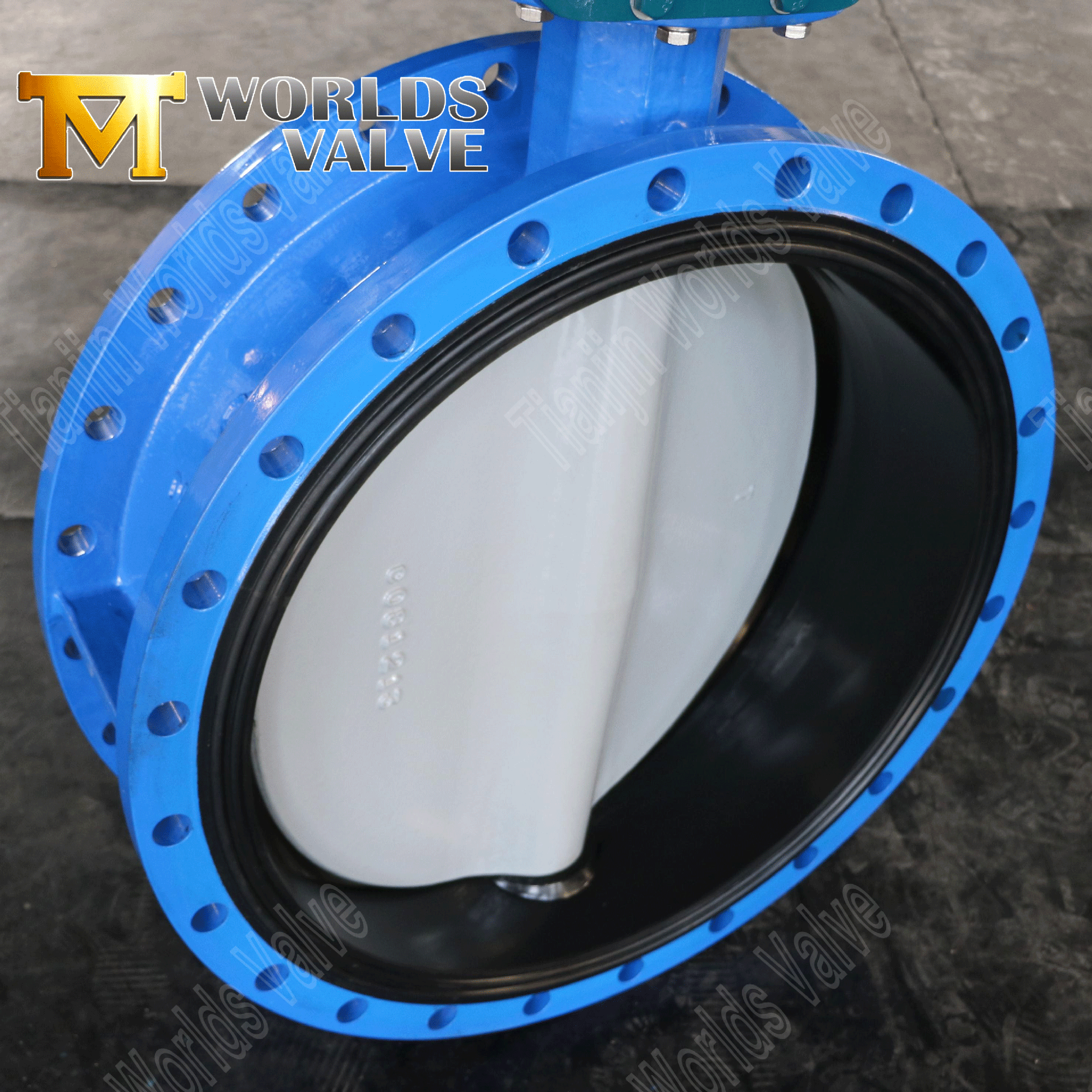

1. Robust Construction with Ductile Iron Disc
The Ductile Iron Disc ensures exceptional strength and resistance to wear, making it ideal for high-pressure and high-temperature environments.
Designed to withstand corrosive media, ensuring long-term reliability.

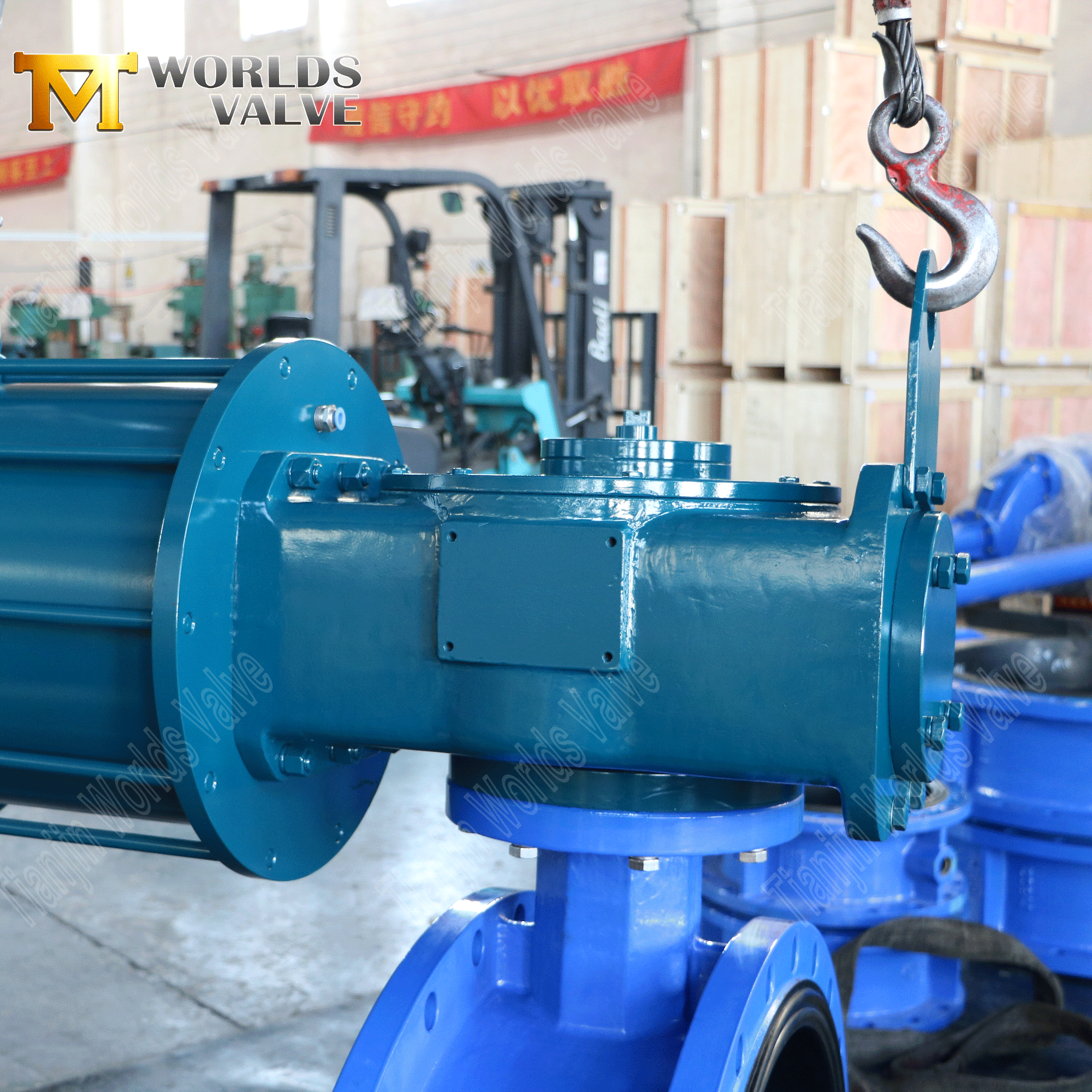

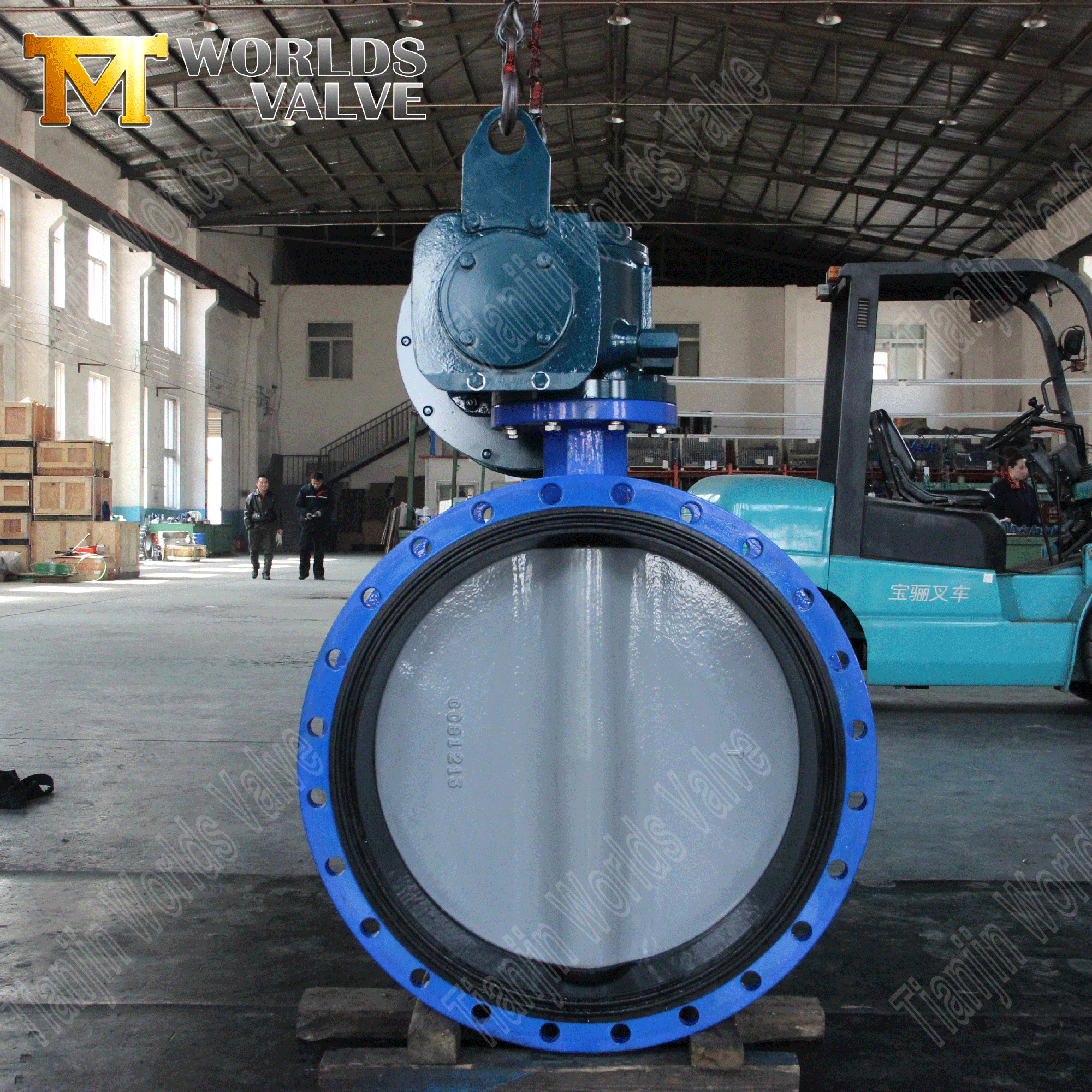

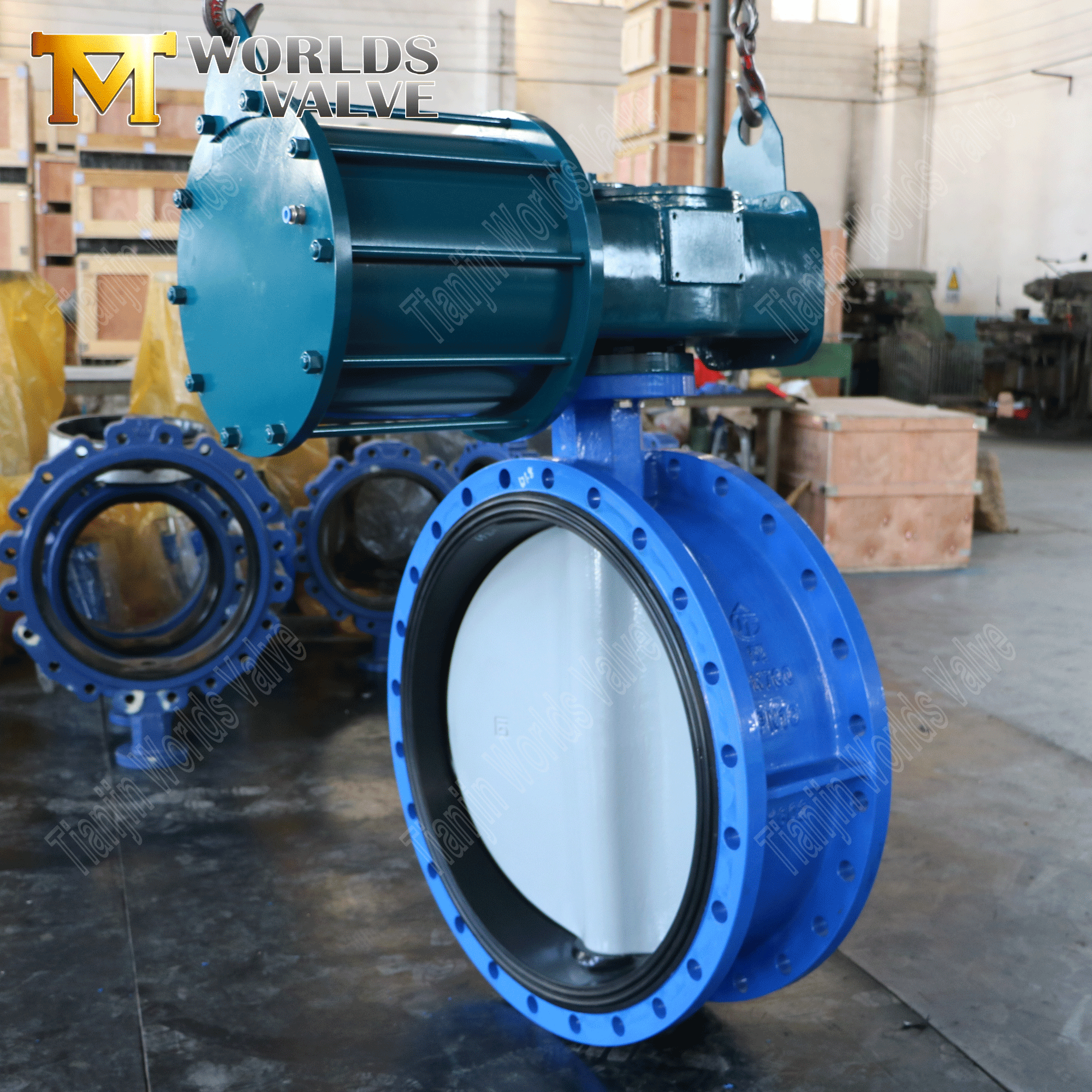

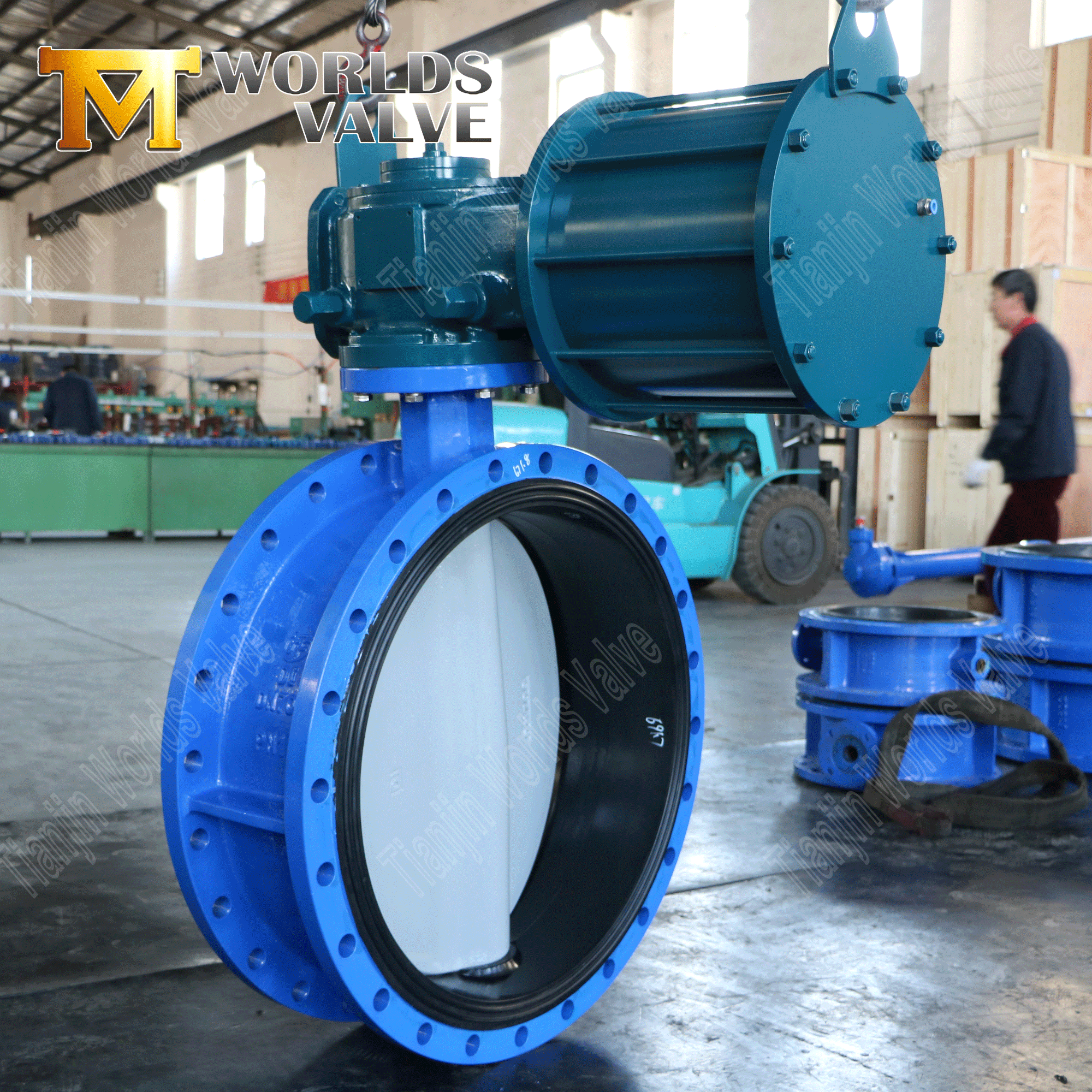

2. Pneumatic Operation for Efficient Control
Equipped with a pneumatic actuator, our butterfly valves offer precise and rapid control of fluid flow.
Suitable for automated systems, reducing manual intervention and improving operational efficiency.
3. Flanged Design for Easy Installation
The flanged ends provide a secure and leak-proof connection, simplifying installation and maintenance.
Compatible with ANSI, DIN, JIS, and other international flange standards.
1. Expertise in OEM/ODM Services
As a trusted Flanged Butterfly Valve Factory, we offer customized solutions tailored to your specific requirements. From design to delivery, we ensure seamless execution.
2. Global Reach with Local Support
With a presence in over 50 countries, we provide timely delivery and dedicated customer support worldwide.
3. Competitive Pricing
Our efficient manufacturing processes and economies of scale enable us to offer high-quality valves at competitive prices.
4. Comprehensive After-Sales Service
We have a professional technical team that provides technical support, installation guidance, and maintenance services.
Size | DN32-DN600 | DN650-DN2000 |
Working pressure | 16Bar | 10Bar |
Shell | 24Bar | 15Bar |
Seal | 18Bar | 11Bar |
Operating Temperature | ||
Operating Environment | Ballast and bilge system Chemical processing Desalination plants Drilling rigs Drinking water Dry powder Food and beverage Gas plants HAVC Mining industry Paper industry Sand handling Seawater Sugar industry Thermo technical water treatment Waste water | |
Driving method | Hand Lever Worm Gear Electric Pneumatic | |
Name | Material |
Body | Cast Iron Ductile Iron Carbon Steel Stainless Steel AL-Bronze |
Disc | Ductile Iron Carbon Steel Stainless Steel AL-Bronze |
Shaft | Stainless Steel Monel K500 |
Seat | BUNA NBR EPDM VITON PTFE HEPDM Neoprene Hypalon Natural rubber |
Design Standard | EN 593 , MSS SP67 API 609 BS5155 |
Inspection & Test | API 598 ISO 5208 EN 12266 |
End Standard | ANSI B16.1 CL. 125LB & B16.5 CL. 150LB AS 2129 Table D & E BS 10 Table D & E DIN 2501 PN6, PN10 & PN16 EN 1092 PN6, PN10 & PN16 ISO 2531 PN6, PN10 & PN16 ISO 7005 PN6, PN10 & PN16 KS B 1511 / JIS B 2210 5K & 10K MSS SP44 CL. 150LB AWWA C207 SABS 1123 Table 1000/3 & Table 1600/3 |
Face to Face | ISO 5752 , EN 558 , MSS SP67 and API 609 DIN3202 |
Top Flange | ISO 5211 |
Discover high-quality Pneumatic Operated Butterfly Valves with Ductile Iron Disc from a trusted Flanged Butterfly Valve Factory-Tianjin Worlds Valve. ISO & API certified, customizable, and built for durability. Ready to enhance your operations with top-quality Pneumatic Operated Butterfly Valves? Contact us today for a free quote or to discuss your custom requirements!
